Overhead line fittings refer to hardware that’s used to hold, join, or support wires and electrical lines on poles or towers. Typical components are clamps, insulators and connectors, all designed for a specific task in power or signal lines.
These components operate in environments with sun, wind and rain. Any of our fittings helps increase safety, reduce line loss, and keep lines operating properly. Understanding fitting types and applications aids in more efficient maintenance and system planning.

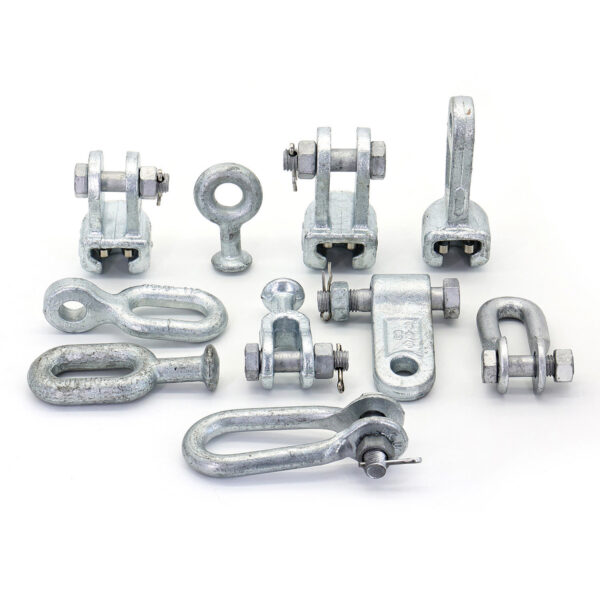

What are Overhead Line Fittings?
Overhead line fittings are indispensible components of any overhead power line. These fittings join and support conductors and insulators, ensuring the entire system functions as intended. You can’t run a safe or good overhead line without a full complement of line fittings.
They need to endure wind and rain, scorching heat or cold, and maintain their cable-holding duties. Typical examples are pole top pins, anchor rods, and armor rods. Quality fittings increase the effectiveness of a network, preserve system integrity and protect individuals and equipment.
1. Core Function
The overhead line fittings serve the primary function of securing wires and binding them to poles or towers. They maintain the conductors in a proper position, ensuring electricity can travel without interruption. If a cable droops, or moves, it can induce faults or blackouts.
Fittings such as suspension clamps and strain clamps distribute the load, therefore there is less pull on the cables. Right fittings reduce tension in the lines, decreasing the chance of breaks or damage when high winds strike or ice accumulates.
Their location and form cause the grid to function as one unit, enabling electricity to travel from Point A to B with minimal losses. The proper selection and installation of fittings determine how efficiently the entire system operates.
2. System Integrity
Maintaining a resilient grid begins with robust fittings. These components need to resist heavy forces, such as the entire weight of the wires, wind gusts, or even ice storms. If a fitting goes, the line could come down or break, causing outages or worse.
Fittings prevent failures by creating robust, stable connections between conductors and support components. Quality fittings assist in supporting the weight of conductors, reduce line sag, and maintain system stability under all types of weather.
By utilizing robust materials and ingenious designs equates to an extended lifespan for the entire installation. High quality fittings means less concern about rust, wear or other aging issues. These have a greater chance at extended, service free of problems.
3. Network Efficiency
Fittings have a huge impact on the efficiency with which electricity travels from point to point. When conductors are maintained in-line and under proper tension, less energy is lost as heat or stray currents. That translates to more power getting where it needs to go.
Quality Overhead Line Fittings, with good fittings, crews can repair lines or replace equipment more quickly. For long runs, like rural power lines, these savings and quick repairs accumulate.
Fittings help keep the power moving, mile after mile.
4. Safety Assurance
Safety is built into every fitting. Each piece has to suit the line’s voltage and local climate, or you could end up with shorts or even fires. Choosing the correct fitting reduces the dangers of power surges or stray currents.
Today’s fittings could have coatings or even integrated shields to protect people, wildlife and equipment. Fittings are selected to fit the application—no cookie-cutter.
Essential Fitting Properties
Overhead line fittings, crucial for reliable energy transmission, connect conductors to support structures, bear mechanical load, and preserve electrical characteristics, ensuring effective protection and performance in overhead transmission lines.
Material Science
Overhead line fittings are generally made of iron, aluminum and aluminum alloy. These metals are selected for their strength, electrical resistivity and capacity to withstand fluctuating weather.
Corrosion-resistant materials are key for long life. In humid or coastal areas, fittings can rust fast if not made from the right alloy. Using alloys or adding protective coatings helps slow down corrosion and keeps fittings working longer.
Lightweight metals like aluminum alloys reduce the weight on power lines. This reduces loads on towers and lowers fitting installation safer and easier. For instance, most suspension clamps now utilize aluminum alloy for light weight and increased performance.
Material science has evolved with improved coatings and composites. A few fittings have begun to use polymer insulators to resist tracking and aging. These changes add up to extended life and reduced replacements.
Mechanical Strength
Overhead line fittings are covered in more detail by mechanical strength rules. They must withstand high winds, ice loading and even impact. One important property is turning angle, such as the counterweight stirrup of a suspension clamp, which permits up to 45° of movement.
Hardness is important for fittings that clamp or grip conductors. Too soft, and a fitting can deform; too hard, and it’ll crack. Tensile strength is the glue holding joints secure under load. Accessories have to move freely along conductors, and insulators, so design has to balance strength and movement.
Mechanical integrity testing consists of tensile pull tests, fatigue and impact resistance trials. These tests verify the fitting’s ability to withstand real-world stresses. Mechanical flexibility is similarly inspected to make sure fittings don’t become brittle in cold climates.
Electrical Performance
Electrical performance evaluates the ability of an overhead line fitting to maintain electrical contact and control faults effectively. Fittings must not introduce hysteresis loss or impede current flow to ensure reliable energy transmission. Maintaining electrical continuity minimizes power loss and hot spots in the power grid.
Dielectric properties are crucial for insulating fittings, especially those on live parts of overhead power lines. Good insulation prevents electrical leakage and reduces the risk of short circuits, ensuring that fittings can pass fault current without melting or breaking, thereby protecting the entire connection system.
Poor electrical performance in fittings can lead to significant system losses and downtime. That’s why standards mandate testing for steady-state and fault conditions — to ensure that fittings perform as expected under various voltage levels, regardless of the load.
Major Fitting Categories
Overhead line fittings are crucial components designed to support, attach, and protect power conductors on transmission lines, ensuring reliable energy transmission. Each fitting category influences the safety, mechanical strength, and performance of power systems globally. Selecting the appropriate overhead line accessories for the voltage, distance, and circuit type is essential, as these factors significantly impact system performance, longevity, and maintenance requirements.
Fitting Category | Function | Applications |
|---|---|---|
Suspension | Supports and secures conductors | Transmission lines, distribution lines, crossings |
Tension | Withstands tensile force | Dead-ends, angle towers, long-span installations |
Connection | Links conductors and cables | Splicing, jumper connections, tap connections |
Protection | Shields lines from hazards | Surge protection, anti-vibration, environmental risk |
Suspension
Suspension fittings are essential components that support the weight of overhead power lines and maintain their alignment. These fittings secure the cable to the pole or tower, enabling the conductor to sway slightly to accommodate wind or line movement. Various types of suspension clamps are available for different conductor sizes and line voltages, including specialized clamps designed for heavy ice or wind loads in high voltage grids.
Proper installation of these overhead line accessories is critical. If done incorrectly, it can lead to misalignment, additional stress, and potential conductor damage. Installers must adhere to torque specifications and utilize the appropriate tools for each clamp, as improper practices can harm both the fittings and the overhead cables.
Suspension fittings play a vital role in controlling tension, allowing lines to flex as necessary and maintain alignment, especially on long spans and at river or road crossings. This ensures reliable energy transmission and supports the overall integrity of the energy infrastructure.
Tension
Tension fittings are crucial for connecting conductors to towers at dead-end locations and critical angles. They have to hold on tight – many are rated at 90%+ of the conductor’s tensile strength. This prevents the lines from sagging and assists in maintaining stable electrical contact across long distances and in severe weather.
Tension clamps include:
- Bolted tension clamps: used for low to medium voltage, easy install
- Compression tension clamps: used for high-voltage lines, require special tools
- Wedge tension clamps: quick install, used on short or temporary lines
- Spiral rod tension clamps: resist vibration, for lines in windy zones
Tension fittings allow conductors to expand and contract with temperature fluctuations. This adaptability is essential for ultra-high voltage or long distance lines, reducing sag and prolonging the life of overhead conductors.
Connection
Connection fittings connect conductors, ground wires or tap points. These consist of sleeve connectors, parallel groove clamps and bolted lugs. Each is designed for a particular cable size and composition.
A strong connection is vital for reliable, consistent energy and less down time. Poor fit or dissimilar metals results in rust, heat and even fire hazard. As a rule, always match connectors to conductor specs–size, voltage and metal type.
Protection
Protection fittings keep overhead lines safe from lightning, swings and weather. Examples include arcing horns, vibration dampers, and surge arresters.
Dampers reduce vibration from wind, as arcing horns direct lightning clear of important components. Surge arresters prevent voltage surges. Routine inspections and servicing are essential to keep these components resilient and maintain cable security.
Design and Environment
Designing overhead line fittings requires careful consideration of how they perform in various locations and climates. Every aspect, from the durability of the fixtures to the selection of poles or insulators, must be thoughtfully chosen. This ensures safe and reliable energy transmission for years, despite variations in weather, pollution, and local regulations.
Climatic Stress
Severe weather such as high winds, ice build-up and lightning may put strain on overhead line fittings. These stresses drive fittings to extremes and can induce bends, cracks or outright failure if not engineered.
Fittings have to be constructed to withstand great fluctuations of temperature and humidity. For instance, metal components expand or contract, and certain plastics become brittle in the cold or warp in the heat.
In other parts, fittings are tested to hang tough through heat waves, ice storms or monsoons. Material selection is critical—toughened glass insulators being selected for regions experiencing sudden cold spells, where porcelain may perform more favorably in temperate climates.
Whenever lines span valleys or coastlines, engineers deploy guy wires and earth anchors to hold it all strong and secure through shifting loads and fierce weather. With proper design, a fitting can outlive 60 years, even as the climate around it continues to evolve.
Pollution Impact
Air pollution tears apart fittings faster than regular use. Dust, salt and chemical pollution accumulate on surfaces and can ignite corrosion or erode metals and insulators.
To combat this, fittings are frequently provided with protective coatings, such as zinc or specialized paints, to prevent moisture and pollutants from infiltrating. In cities with high smog or near coastlines, these coatings are thicker and checked more frequently.
Certain fittings utilize glass or composite insulators due to their ability to shed dirt and resist buildup more readily. To keep them turning over, crews scrub and inspect valves at regular intervals, using water jets or custom brooms to remove grease and sea salt.
Regional Standards
Each jurisdiction establishes its own standards for overhead line fitting construction and installation. They range from the bolt size to the strength of insulators and the thickness of coatings.
It’s not only legal to adhere to these rules—it preserves safe lines and reduces service interruptions. Some locations demand extra-strong fittings due to earthquakes, others seek superior coatings for salty air.
Makers of these fittings have to keep up and test the products to local needs. Not only does it help all of us stay safe, it keeps power running where its needed.
Environmental Considerations
Overhead lines can alter the appearance of a landscape or interfere with local ecosystems. Planners attempt to select routes and designs that reduce these effects.
The use of concrete poles in challenging locations and sensitive siting can extend line life and improve line integration. Teams try to minimize noise and destruction during construction as well.
Some of the hardware is selected to reduce the potential harm to birds. Some employ neutrals to reduce visual noise.
Selection and Installation
The selection and installation of overhead line fittings is a critical step that defines the safety, reliability, and longevity of power lines. The correct overhead line hardware must fit the conductor type, voltage levels, and weather conditions. Every stage—from sourcing the appropriate component to monitoring its condition in-service—requires attention so that reliable energy transmission can continue securely and efficiently.
Specification
- Check compatibility with conductor type and voltage rating
- Confirm mechanical strength and hardness match load needs
- Ensure material resists corrosion, heat, cold, and rain
- Assess ease of installation and future replacement
- Review manufacturer’s technical specs and certifications
Each power line system is different, so fittings have to match the line’s dimensions, configuration, and anticipated stress. A 33 kV rural feeder fitting, for instance, is quite distinct from a 400 kV transmission one—both in size and the stresses they must absorb.
The perfect pairing maintains the system healthy and secure, whether it’s a small metropolitan grid or an extensive countryside stretch. Ensuring the turning angle of clevis or suspension clamps matches the line’s geometry is as important as verifying material hardness for wear resistance.
Voltage and mechanical ratings do matter. A fixture must stand up to leaky faults and troublesome storms and the strains of everyday use. It’s important to select based on not only the peak voltage but the mechanical stress it will encounter such as tension and bending.
A pre-purchase checklist checks all the boxes, from electrical specifications to repairability.
Installation
- Use torque wrenches and calibrated tools
- Follow step-by-step manufacturer guides
- Check fitting alignment and tightness at each step
- Use personal safety gear and insulated tools
It’s not just for speed – the right tools protect both the fitting and the installer. One improperly tightened bolt or twisted clamp can burn out a drive or shred a belt. Fitting jobs, especially at higher voltages, should only be done by trained staff.
Training should include the newest safety techniques, types of fits and real-world troubleshooting. A good install equates to less repairs and less risk. Properly installed, fittings remain robust despite decades of weather and electrical strain.
Inspection
- Check for rust, cracks, and loose parts
- Test tightness of bolts and connectors
- Look for signs of overheating or arcing
- Record findings for future maintenance
Routine inspections catch problems early. Indicators such as rust or bent hardware indicate an impending fitting failure. Checks are not just a gesture—they spot wear before it becomes hazardous.
It’s a straightforward list, executed on time, that keeps the lines safe and power flowing.
Conclusion
Overhead line fittings for working behind the scenes keeping power lines safe and steady. Quality fittings withstand high winds, rain and heat, so lines hang tough. Line guys need to choose the appropriate components and inspect at each step to prevent minor defects that can become major issues. Stainless steel clamps, copper sleeves, and smart hardware choices all matter more than you think. Each has its part to perform, from bolts of the basic variety to rugged insulators.
At FERR, we not only manufacture overhead line fittings, we design them for durability, precision and performance in the most demanding grid conditions.
From forged clamps to custom hanging hardware, we have strong in-house capabilities to ensure that every part meets international standards and your specific project needs. FERR is a professional overhead line fittings manufacturer. Contact our team today to discover how FERR can support your transmission line project with fast delivery cycles, expert advice, and reliable quality.
Frequently Asked Questions
What are overhead line fittings?
Overhead line fittings, essential components for connecting and supporting conductors and insulators on power transmission lines, ensure reliable energy transmission and effective protection for overhead power lines.
Why are the properties of overhead line fittings important?
These qualities, along with strength, corrosion resistance, and electrical conductivity, define the reliability and lifespan of overhead line fittings and their role in effective energy transmission.
What are the main categories of overhead line fittings?
Main categories include suspension clamps, tension clamps, connectors, and insulator fittings, all essential components for securing and supporting overhead transmission lines in the power grid.
How do design and environmental factors affect fittings?
Factors such as design and environmental conditions like wind, temperature, and pollution affect the selection of overhead line material and the shape of fittings, aiding in the performance of overhead power lines under varying weather and mechanical stresses.
How should overhead line fittings be selected?
Choice is based on conductor type, voltage levels, environment, and mechanical criteria. The right selection of overhead line materials guarantees fit, safety, and durability.
What is involved in installing overhead line fittings?
Installation requires the right equipment, experienced professionals, and adherence to safety regulations. The overhead line fittings play a crucial role in ensuring reliable energy transmission and minimizing maintenance.
Why is regular inspection of overhead line fittings necessary?
Periodic inspection identifies wear, corrosion, or damage in its early stages, ensuring effective protection for the power grid and prolonging the life of the overhead transmission lines.
