Key Takeaways
- Street light foundations are vital to the safety, functionality, and aesthetics of public lighting, impacting stability and durability across different settings.
- Choosing the right foundation type and using good materials is a critical process that guarantees site and pole specification compatibility, minimizing required maintenance in the future.
- There is a great deal of art involved and science when it comes to designing foundations that can stand up to local soil conditions and load calculations.
- Following codes and safety standards in installation not only protects against accidents, but meets legal standards and fosters public trust.
- After an efficient install process — site prep, placement, backfilling — street light durability is ensured.
- Routine inspections, preventative maintenance, and community awareness are essential habits that preserve the enduring integrity of street light foundations in communal areas.
A street light foundation is what anchors a street light pole and keeps it stable. Most street light foundations utilize concrete or steel, and builders select the type depending on site requirements and pole height.
Robust foundations assist street lights to withstand wind or collision and continue operating for years. To choose the appropriate foundation, engineers evaluate soil, climatic, and load information for each site.
What are Street Light Foundations?
There are core structures built to support and anchor light poles called street light foundations. They are crucial in ensuring the lighting system is efficient, secure, and aesthetically pleasing in urban as well as rural areas.
Street light foundations are one-piece steel piles driven into the soil which act as foundations for street lights. The requirement for solid foundations is obvious. These poles endure continuous wind, weather, and occasionally even seismic motion.
Durability and reliability are key because street lights aren’t only designed to keep us illuminated; they’re critical for making a space safe and inviting.
1. Core Purpose
Street light foundations ensure that each pole remains strong and upright, even in challenging circumstances. Their primary purpose is to distribute the weight of the pole into the ground so the load isn’t concentrated in one location.
This is crucial, particularly for tall or heavy poles in regions that experience strong winds or congested highways. Solidly set foundations save your lighting system by preventing poles from leaning, shifting or falling — lengthening its service life.
Installation is critical, too – skimping on this can result in premature failures or hazards. With a solid foundation, the entire arrangement holds up better over time and requires less maintenance, thus saving you time as well as money.
2. Key Components
Steel piles comprise the core of nearly all modern street light foundations, but other components count equally. Standard configurations use a mounting plate with a bolt circle, heavy-duty anchor bolts and a pole cap.
These components cooperate to secure the pole while allowing workers to install wiring and perform maintenance as necessary. Top-shelf materials are key to the entire configuration.
Steel resists rust and wear, which is key for outdoor use. Others utilize a dual-sided wiring channel to further expedite and secure electrical installation. Each of them must be compatible with the pole specifications or it may all fall apart.
Custom designs help meet special requirements, like bigger poles or higher torque ratings.
3. Structural Role
A foundation absorbs both the vertical load from the pole and the lateral force from wind or even small earthquakes. Load calculations assist engineers to select the appropriate size—6”, 8”, or 10” diameter piles—so that each foundation is tailored to its task.
The mounting plate and anchor bolts ensure these forces enter into the ground, not the pole. A good foundation ensures that the entire light pole system remains secure and safe.
If the base is off, the entire pole can lean or fall over. Good engineering and durable materials ensure the system keeps running for years, even in harsh environments.
4. Safety Mandate
Safety guidelines should inform each phase of design and setup. Inspections ensure the work satisfies all requirements. A good foundation prevents disasters, such as a lamppost toppling onto a road or walkway.
Good maintenance guards the entire neighborhood and keeps the lights on. Routine monitoring and maintenance catch issues early.
Types of Streetlight Base
Streetlight bases come in different styles to accommodate various ground surfaces, project requirements, and budgets. The correct base selection can impact project speed and cost. Each type has advantages and disadvantages that suit some sites better than others.
So, matching the base style to soil, weather and local regulations keeps the lights grounded and secure for the long haul.
Direct Embedment
Direct embedment refers to installing the pole directly into a dug hole, backfilled with dirt or gravel. This approach is straightforward and doesn’t require additional hardware such as anchor bolts or templates. It commonly employs round or square rebar cages for strength, and the pole depth generally adheres to the 5 feet deep for a 20-foot pole rule. However, using light pole foundations can enhance stability in various soil conditions, providing a more reliable foundation method.
This approach is low up-front cost and quick installation. That’s typical where budgets are lean or time is of the essence. No concrete trucks or cure times – crews can install more poles per day, especially when utilizing precast concrete light pole foundations for efficiency.
However, its support is less in poor soils, such as sand or loose clay. In these instances, poles lean or settle. Without a poured base, repairs or swaps become more difficult. For repairs, it’s hard to jack up and reset a pole as the embedment can move over time.

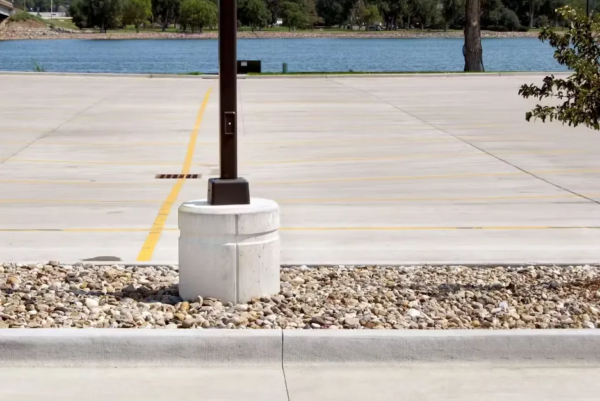

Precast Concrete
Precast concrete bases are manufactured in factories and delivered to the site, ready to go. These bases are in set shapes and sizes, frequently with pre-formed holes for anchor bolts, which can be retained with metal templates or plywood patterns. They are high quality because they’re produced in controlled environments.
This implies less blemishes from climate or hasty location job. The primary benefit is velocity. Behind the scenes, workers drop the precast base in the hole, level it, and bolt the pole on top. This reduces labor expense and decreases project duration.
Precast plays nicely in most climates and soil compositions, from the dry and rocky to the wet and clay-laden. The only exception is when custom shapes or sizes are required, which might not fit standard factory molds.
Poured-in-Place
Poured-in-place bases are constructed for each individual location, utilizing light pole foundations that ensure stability. Crews excavate a hole, install rebar cages (square or round), and pour concrete—frequently into a sonotube for form. This method allows for constructing deeper or wider bases as necessary, especially for tall poles or soft soil conditions. The use of precast concrete light pole foundations can further enhance the efficiency of the installation process.
It’s a modular approach enabling engineers to meet stringent requirements, making it ideal for unusual project layouts or specific municipal codes. However, the downside is that poured concrete needs to cure, which can take several days, and adverse weather conditions can cause delays.
The cast base is rugged, and when anchored with straight bolts tied to rebar, it’s less prone to pull out than ‘L’ type bolts. This reliable foundation method provides the pole with a rock-steady grip for decades, ensuring long-term stability.
Anchor-Based
Advantages | Disadvantages |
|---|---|
High adjustability | More parts to inspect |
Fast replacement | Higher up-front cost |
Good in bad soils | Needs careful placement |
Anchor-based systems work well where soil shifts or frost is a concern. The pole bolts to a steel base plate with straight anchor bolts set in concrete. Straight bolts, versus “L” types, hold better and last longer.
Crews love this system because it allows them to customize or replace poles quickly. Helical anchors provide added grip in sand, mud or fill.
In the long run, this configuration provides a stable, secure foundation, even if the soil shifts.
Critical Design Factors
The durability and longevity of a street light is significantly reliant on its foundation design, particularly the use of precast concrete light pole foundations. Nailing the fundamentals—soil studies, environmental fit, accurate load calculations, and legal regulations—can be the difference between a secure, durable project and expensive, dangerous outcomes. The correct light pole bases assist in reducing maintenance requirements and increasing the operational lifetime of the entire street lighting system.
Soil Conditions
Soil type dictates the type of foundation you require for street lights. Sandy, clay, or rocky soil all behave very differently under load. Bad soils such as loose fill and peat require deeper or wider footings, occasionally with piles or caissons to bedrock or firm stratum.
Without first testing the soil, it’s easy to overlook troubles that can cause tilt or collapse. Tradition dictates to field test before you dig. These tests indicate the depth and strength of the soil, allowing you to strategize the appropriate foundation.
Although rocky soil can support high loads, it may require specialized drilling equipment. Loose or wet soils are of low strength and require additional support. Clay can move with water, so more caution is necessary. Each type vary not only in depth but in style and size of base.
Environmental Impact
Street light projects impact the environment. Digging and concrete pour can disrupt root or water flow. Minimize site disruption with bored piles or pre-cast bases which require less excavation.
Green alternatives are gaining traction. Others incorporate recycled concrete or steel. These reduce waste and carbon emissions. This push for dark-sky compliance helps mold foundation layout too, since improved pole placement equates to less up-light.
For instance, lower CCT lamps (3000K or less) reduce skyglow and minimize damage to wildlife.
Load Calculations
The weight a streetlight has to support — wind, pole weight, fixtures and additional equipment — establishes the base size minimum. Taller poles on broad avenues or highways require a larger, deeper foundation to keep them from tipping over. Mess this up and it can cause the pole to lean, crack, or even fall in storms.
Proper load checks consider pole height, arm length and site windspeeds. For instance, a 6-meter pole on a city street might require a base 1 meter deep and 0.5 meters wide, but a 10-meter pole on a windy highway needs more. Every step in the math should meet local safety standards.
Regulatory Codes
Most jurisdictions have rigid foundation design codes. These regulations span depth, shape, and even concrete mix. Following them is not only good practice–it’s the law.
Adhering to codes = safer streets. It protects cities and builders from lawsuits if something goes awry. If you skip the rules, you may face fines or mandatory repairs.
The Installation Blueprint
Street light foundation work requires a careful installation blueprint. Too many people skip steps or miss details and it ends up causing delays, or more expensive, or unsafe outcomes. A well-laid blueprint means everything fits – from that initial dig to the final pole bolt.
A good plan minimizes surprises, helps keep budgets on track, and avoids expensive fixes. Experienced craftsman ensure every phase is done right. With quality design and skilled hands, installations endure and require less maintenance.
A typical installation has numbered steps:
Check out the site and have utilities marked to avoid underground cables and pipes.
Flatten the ground, and dig the hole—at least 90cm deep and wide for the pole base.
Dump concrete in layers, transferring it when it exceeds 28cm in thickness, maintaining a level surface.
Allow concrete to cure and insulate after attaining 2.5 MPa strength.
Install the pole with either direct burial or anchors.
Backfill with the right soil and compact it well.
Working out the details in advance allows teams to identify challenges early. This translates to less production shutdowns and less money spent correcting errors. The installation blueprint is professional knowledge — using such installers enhances quality and safety, particularly for taller poles or in windy locations.
Site Preparation
Staking where the pole will stand kicks off the work. First thing, crews locate and mark all underground cables, water pipes and gas lines. This step prevents expensive damage and maintains everyone’s safety.
After that, all junk, rocks or tree roots need to be out. The floor should be level, compacted and dig-ready. If it’s not, the base could incline or move in time – wreaking havoc for the post overhead.
Thoughtful site inspections identify drainage hotspots or unstable soils. If necessary, additional measures like gravel or tamped earth aid the foundation’s longevity. In bustling city locations or by roads, clearing for surrounding buildings, traffic and sidewalks keeps work fluid and secure.
Excavation
Excavation isn’t just about digging a hole. The hole should correspond to the design—at least 90 cm deep, with room for the pole’s base and any anchor bolts. Digging too shallow and the pole could tilt or sink. Too deep and you’re wasting time and money.
Safety counts at this stage. Crews in helmets, gloves, and boots. Barriers that exclude bystanders. Too loose or wet soil may require shoring up or draining. How the hole is dug impacts the entire project.
A nice hole, dug just right, stops future cracking and keeps your pole standing tall for years.
Placement and Curing
Placement is simply placing the concrete footing or precast in to the hole. For poured concrete, they add fill to the hole in lifts, tapping or vibrating to de-air. Every layer should be no more than 28 cm thick.
The pole needs to sit straight. Even a slight lean can lead to post-installation issues, particularly with poles that are 6 meters or greater in height. Concrete needs to cure. Water and insulation assist it to reach 2.5 MPa prior to the next stage.
Or if it’s too hot, or dry, or cold, the concrete might not set properly. Issues today can compromise the entire mast causing it to splinter or deteriorate more quickly.
Backfilling
Backfilling arkly covers the foundation with soil. It has to be the right type—clean, not too sandy or squishy. Laborers stuff and tamp the earth in lifts.
Good compacting prevents the soil from settling later. If the backfill is too loose, water could infiltrate and undermine the foundation. Solid backfilling keeps the whole system firm.
Ensuring Long-Term Stability
Solid street light bases are the cornerstone of secure, durable public illumination. Proper foundation and intelligent maintenance maintain illumination and reduce hazards to consumers. Best practices, routine checks, and simple maintenance all help keep these systems going for years.
Checklist for Long-Term Stability
- Go with good materials, well installed, poles at least 0.9 meters in the ground.
- Clean solar panels and inspect battery systems regularly, accounting for local dust or weather conditions.
- Check controller settings and wiring to prevent malfunctions before they escalate.
- Twist solar panel and tilt angles as necessary for optimal energy collection.
- Inspect for rust, corrosion, or damage on all components, particularly following severe weather.
- Maintain transparent documentation of all efforts and results to inform future planning.
- Engage the local community to quickly report faults or vandalism.
Inspection Protocols
Inspection Type | Frequency | Criteria |
|---|---|---|
Full inspection | Every 3 months | Structural, electrical, physical wear |
Solar panel cleaning | As needed | Seasonal dust or pollution |
Controller check | Quarterly | Settings, connections, function |
Rust/corrosion check | Biannually | Visual signs, after storms |
Quarterly inspections identify vulnerabilities in light pole foundations and help avoid unexpected breakdowns. Teams search for surface cracks, loose bolts, or signs of shifting ground. Particular care is taken to the basement, wall plates, and cabling, ensuring that the helical foundation systems are intact.
By logging every discovery, you ensure that patterns are traceable, allowing for proactive solutions rather than reactive ones. Good inspection records help future work by indicating what had been repaired, when, and why, which aids in forecasting repairs and fosters responsibility in maintenance crews.
Rust or tilt problems detected early enable teams to intervene before safety is compromised, ensuring the reliability of the foundation system.
Maintenance Practices
Everyday maintenance such as tightening bolts, testing batteries and debris removal can extend the life of each street light by years. Minor repairs—sealing cracks or replacing a frayed cable, for example—must be addressed immediately, not deferred. Delaying small fixes is an invitation to expensive, large-scale breakdowns.
Seasonal shifts require specific tasks. Before rainy or windy seasons, teams need to make double sure all anchors are solid and all drains clear. Winter means solar checkups, as shorter days tax battery life.
Trained staff, who know what red flags to watch for, are superior at catching issues early and making repairs stick.
Damage Mitigation
Solid foundations have to endure the elements and road wear and the test of time. Corrosion-resistant metals and stable cement mixes are good, too. Teams check for cracks, sinking or rust, particularly after storms or cold spells.
Community members can assist by reporting broken poles or indicative tampering. This enables firefighters to respond rapidly, preventing more extensive destruction from occurring. Vandalism and car bumps are constant threats, so clear signage and good lighting aid in maintaining the space safe and nurtured.
Fast patches to any issue, large or microscopic, maintain the entire system’s equilibrium. When detected early, the majority of problems are easy to repair.
Conclusion
Street light foundations have a huge role in urban living. Our sturdy foundations hang on and hold lights up and secure, even in wind or rain. Both varieties have their advantages. Concrete foundations are durable and perform well on heavily traveled routes. Steel bases rise quickly and fit locations where time is of the essence. Great projects begin with proper foundation for the soil and the work. Smart choices save money and increase safety. Maintenance keeps the lights on and reduces major repairs. To keep city streets shining, apply what you learned here. Tell us your wins or frustrations with street light foundations. Chat with peers in your proximity. Make the conversation last and build smarter streets for everyone.
Frequently Asked Questions
What is a street light foundation?
Street light foundations, including precast concrete light pole foundations, are essential for anchoring light poles securely to the ground, ensuring safety in any weather conditions.
Why are different types of streetlight bases used?
Various foundations, such as precast concrete light pole foundations and helical foundation systems, are appropriate for different soils, pole heights, and environmental considerations.
What materials are commonly used for street light foundations?
Concrete and steel are the most common materials for light pole foundations, offering durability and corrosion resistance for reliable outdoor applications.
How deep should a street light foundation be?
The depth of light pole foundations is influenced by factors such as pole height, soil type, and wind load, typically requiring a minimum of 1 meter for reliable foundation methods.
What are critical design factors for street light foundations?
Soil condition, load requirements, wind speed, and local regulations are key factors for concrete light pole foundations; a good design avoids leaning and collapse.
Can street light foundations be reused?
In many cases, concrete light pole foundations are reusable if not damaged and if they meet new pole specifications, requiring inspection before reuse.
How do you ensure long-term stability of a street light foundation?
Use durable materials, correct installation of precast concrete light pole foundations, and regular inspections to ensure drainage is good and soil is healthy
